Description

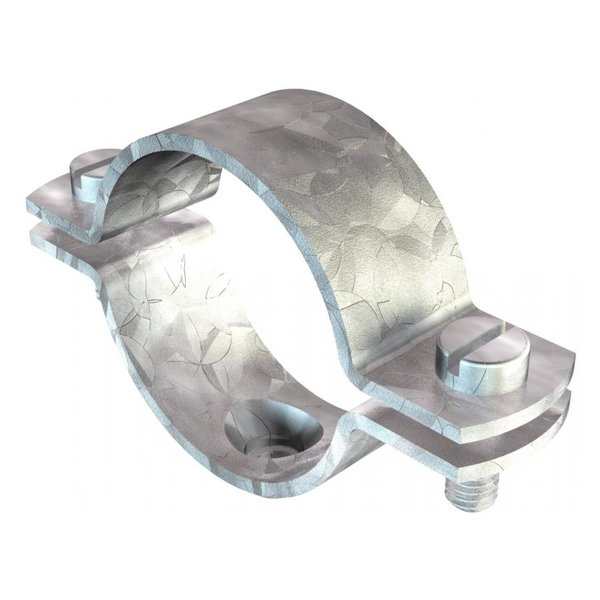

OBO Bettermann 2900WM6 42.5 FT — Saddle Clamp. Manufacturer designation: Screw-in spacer clip, heavy-duty version M6. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 2900WM6 42.5 FT |
| Article No. (MPN) | 1385089 |
| Product Category | Cable Support & Routing |
| Hole size | M6 |
| Clamping range D, min. | 12,5 |
| Clamping range D, max. | 13,5 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Material thickness | 2,5 |
| Packaging without plastic | yes |
| Length | 83 mm |
| Dimension A | 83 mm |
| Dimension B | 67 mm |
| Dimension d min. | 42,5 mm |
| Dimension t | 2 mm |
| Dimension x | 3 mm |
| Dimension t1 (mm) | 2 mm |
| Dimension D | 42,5 mm |
| For diameter | 42,5 |
| Halogen-free | no |
| Thread | M6 |
| Size | 1 1/4 |
| UV-resistant | yes |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
