Description

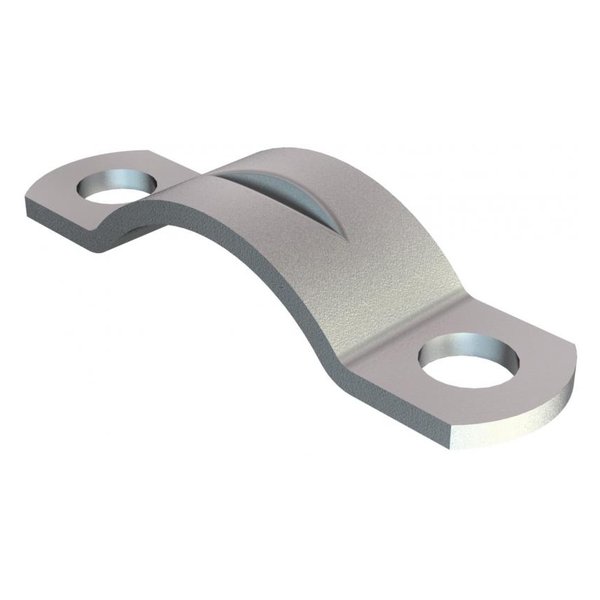

OBO Bettermann 7903 9 G — Saddle Clamp. Manufacturer designation: Strain relief clip 7903. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 7903 9 G |
| Article No. (MPN) | 1437038 |
| Product Category | Cable Support & Routing |
| Material thickness | 0,5 |
| Hole size | 2,5 |
| Packaging without plastic | yes |
| Length | 31 mm |
| Height | 4 mm |
| Dimension L | 31 mm |
| Dimension d | 4,5 mm |
| Dimension t | 1,5 mm |
| Dimension b | 8 mm |
| Dimension h | 4 mm |
| Dimension R | 9 mm |
| Halogen-free | yes |
| Size | III |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Nominal diameter | 9 mm |
| Distance to the wall | no |
| Version for | Two-lobe |
| ROHS-conformant | yes |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
