Description

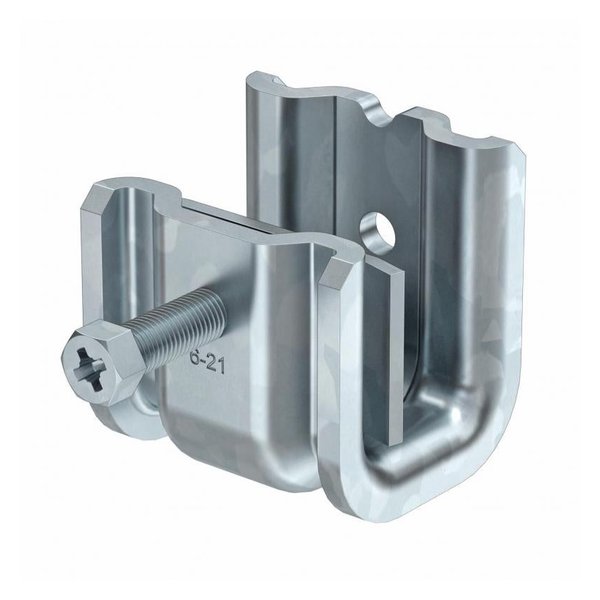

OBO Bettermann SSP 6-21 M8 FT — Fixing Clamp SSP. Manufacturer designation: Beam clamp SSP 6-21, FT M8. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | SSP 6-21 M8 FT |
| Article No. (MPN) | 1486282 |
| Product Category | Cable Support & Routing |
| Dimension L | 47 |
| Dimension B | 48 |
| Flange thickness F max. | 21 |
| Dimension H | 46 mm |
| Thread | M8 |
| Hinged | no |
| Hinge, adjustable | no |
| Breaking load F1 | 1,75 kN |
| Breaking load F2 | 1,5 kN |
| ROHS-conformant | yes |
| Flange thickness F min. | 6 mm |
| Dimension | 6-21mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Product series | Support clamp |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
