Description

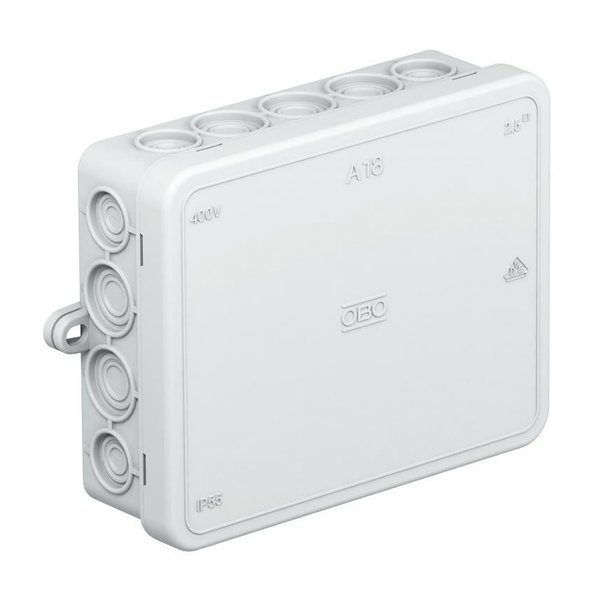

OBO Bettermann A 18 — Junction Box. Manufacturer designation: Junction box A 18. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | A 18 |
| Article No. (MPN) | 2000410 |
| Product Category | Enclosures & Junction Boxes |
| Clear internal dimensions | 115x90x35 |
| No. of entries | 18 |
| Protection rating | IP55 |
| Colour | Light grey; RAL 7035 |
| Length | 125 mm |
| Height | 40 mm |
| Halogen-free | yes |
| Entry from rear | no |
| Nominal voltage | 690 V |
| Expandable | yes |
| Sealable | no |
| For Ex zone | Without |
| Measured insulation voltage Vi | 690 V |
| Maintain electrical functions | Without |
| Explosion-tested version | no |
| With screening | no |
| Weatherproof | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Max. Conductor cross-section | 2,5 mm² |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
