Description

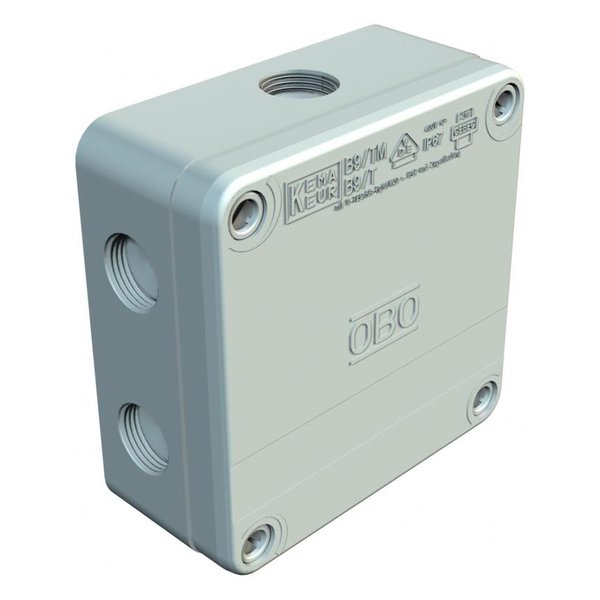

OBO Bettermann B 9 T — Junction Box. Manufacturer designation: Junction box B 9 T, perforation membrane, empty, PG. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | B 9 T |
| Article No. (MPN) | 2001810 |
| Product Category | Enclosures & Junction Boxes |
| Clear internal dimensions | 98x98x40 |
| Protection rating | IP67 |
| Colour | Light grey; RAL 7035 |
| Packaging without plastic | yes |
| Length | 110 mm |
| Height | 51 mm |
| Halogen-free | yes |
| Entry from rear | yes |
| Nominal voltage | 400 V |
| Expandable | yes |
| Sealable | yes |
| For Ex zone | Without |
| Measured insulation voltage Vi | 400 V |
| Maintain electrical functions | Without |
| Explosion-tested version | no |
| Weatherproof | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Max. Conductor cross-section | 6 mm² |
| Nominal cross-section, min. | 4 mm² |
| Condition | New & original |
| Availability | On request |
