Description

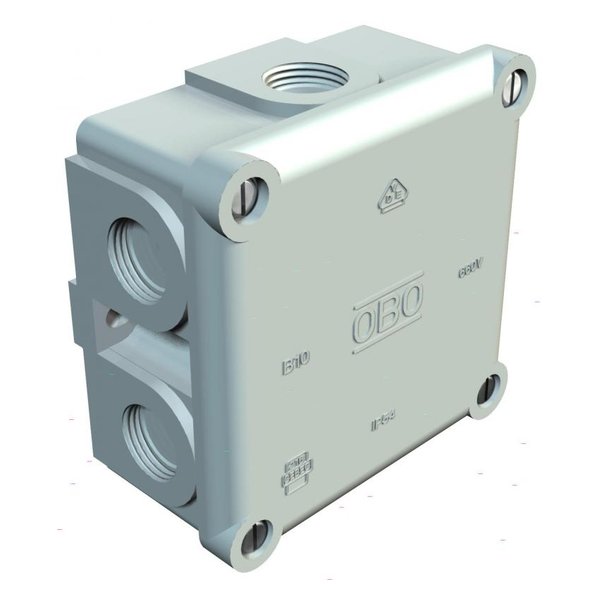

OBO Bettermann B 10 M — Junction Box. Manufacturer designation: Junction box, B 10 M, with thread. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | B 10 M |
| Article No. (MPN) | 2002167 |
| Product Category | Enclosures & Junction Boxes |
| Clear internal dimensions | 73x73x35 |
| Protection rating | IP54 |
| Colour | Light grey; RAL 7035 |
| No. of entries | 10 |
| Packaging without plastic | yes |
| Length | 91 mm |
| Height | 51 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| Entry from rear | no |
| Nominal voltage | 660 V |
| Expandable | no |
| Sealable | yes |
| For Ex zone | Without |
| Measured insulation voltage Vi | 660 V |
| Maintain electrical functions | Without |
| Explosion-tested version | no |
| With screening | no |
| Weatherproof | no |
| For pipe diameter | 20 mm |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
