Description

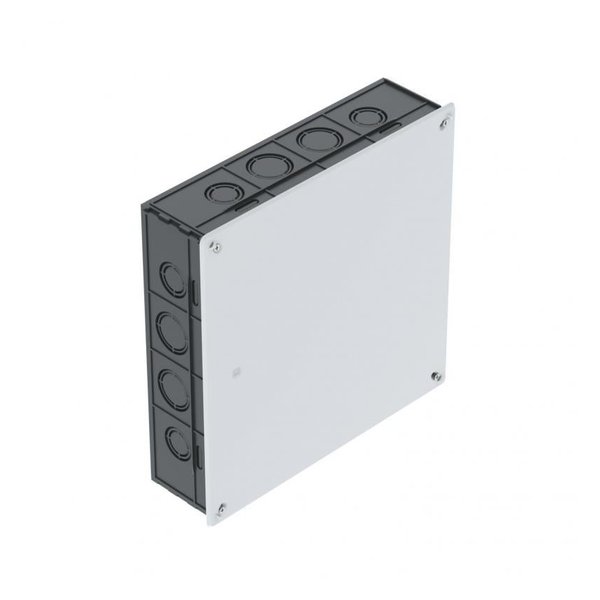

OBO Bettermann UV 250 K — Flush-Mounted Connection Box. Manufacturer designation: Flush-mounted connection box 250. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | UV 250 K |
| Article No. (MPN) | 2003136 |
| Product Category | Enclosures & Junction Boxes |
| Height | 65 |
| No. of entries | 40 |
| Length | 250 mm |
| Dimension A | 328 mm |
| Dimension B | 260 mm |
| Dimension H | 65 mm |
| Impact-resistant | no |
| Floor height, min. | 67 mm |
| Halogen-free | no |
| Entry from rear | no |
| Protection rating | IP20 |
| Sealable | no |
| Maintain electrical functions | Without |
| With screening | no |
| With bolts | no |
| Airtight | no |
| With nail strap | no |
| Support | Without |
| Nominal cross-section, min. | 16 mm² |
| Shape | Square |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
