Description

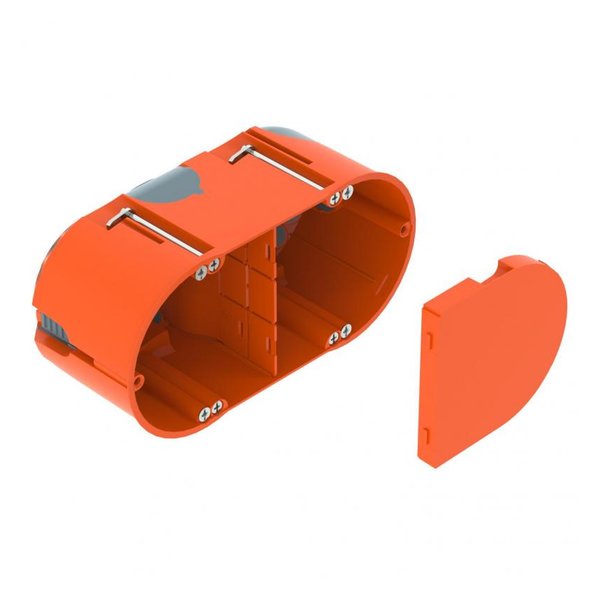

OBO Bettermann HE 61-DV-L — Cavity Wall Electronic Box HW. Manufacturer designation: HW Cavity wall electronic box 61, airtight. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | HE 61-DV-L |
| Article No. (MPN) | 2003826 |
| Product Category | Enclosures & Junction Boxes |
| Height | 61 |
| Milling hole diameter | 68 |
| No. of entries | 14 |
| For pipe diameter | 20/25 mm |
| Length | 142 mm |
| Impact-resistant | no |
| Suitable for plate thickness, min. | 5 mm |
| Suitable for plate thickness, max. | 40 mm |
| Accessory screw clearance | 61 mm |
| Halogen-free | yes |
| Device fixing | Screws |
| Protection rating | IP30 |
| With bolts | yes |
| Airtight | yes |
| Support | Connector |
| Nominal cross-section, min. | 1,5 mm² |
| Nominal cross-section, max. | 2,5 mm² |
| Shape | Oval |
| Cover | Orange |
| Cover fastening | Locking |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
