Description

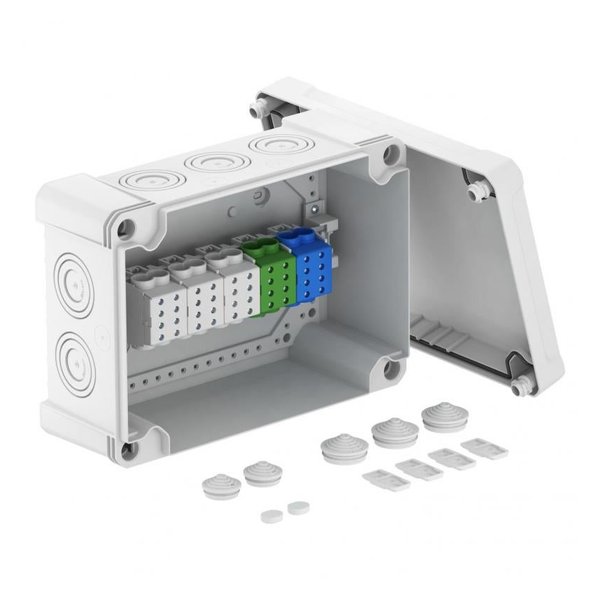

OBO Bettermann X25 H50 GNP5 LGR — Junction Box. Manufacturer designation: Junction box X 25 with main terminal block. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | X25 H50 GNP5 LGR |
| Article No. (MPN) | 2005324 |
| Product Category | Enclosures & Junction Boxes |
| Clear internal dimensions | 271x187x110 |
| No. of entries | 10 |
| Protection rating | IP67 |
| Colour | Light grey; RAL 7035 |
| Length | 286 mm |
| Height | 126 mm |
| Impact-resistant | yes |
| Halogen-free | yes |
| Fibre-glass reinforced | yes |
| Entry from rear | no |
| Nominal voltage | 750 V |
| Expandable | yes |
| Sealable | yes |
| Measured insulation voltage Vi | 750 V |
| Explosion-tested version | no |
| With screening | no |
| Weatherproof | yes |
| Protection rating IK code | IK09 |
| Max. Conductor cross-section | 50 mm² |
| Nominal cross-section, min. | 10 mm² |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
