Description

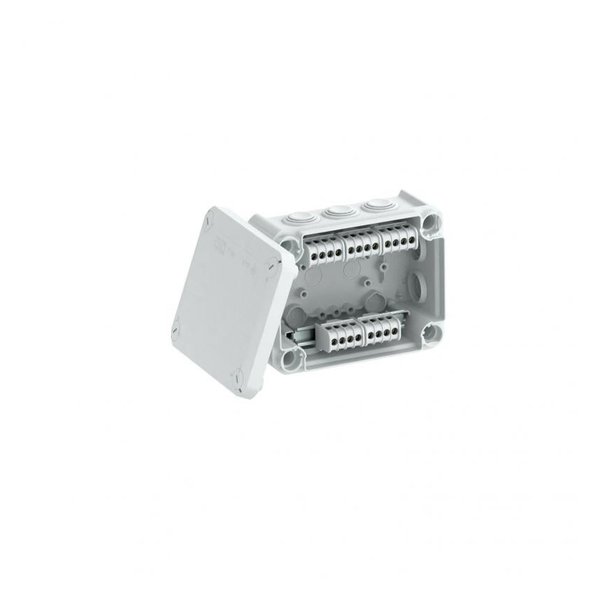

OBO Bettermann T 100 KL — Junction Box With Terminal Strip. Manufacturer designation: Junction box T 100, plug-in seal, terminal strip. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | T 100 KL |
| Article No. (MPN) | 2007436 |
| Product Category | Enclosures & Junction Boxes |
| Clear internal dimensions | 136x102x57 |
| No. of entries | 10 |
| Protection rating | IP66 |
| Colour | Light grey; RAL 7035 |
| Length | 150 mm |
| Height | 67 mm |
| Halogen-free | yes |
| Fibre-glass reinforced | no |
| Entry from rear | yes |
| Nominal voltage | 500 V |
| Expandable | yes |
| Sealable | yes |
| For Ex zone | Without |
| Measured insulation voltage Vi | 500 V |
| Maintain electrical functions | Without |
| Explosion-tested version | no |
| With screening | no |
| Weatherproof | no |
| Protection rating IK code | IK07. |
| For Ex zone gas | Without |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
