Description

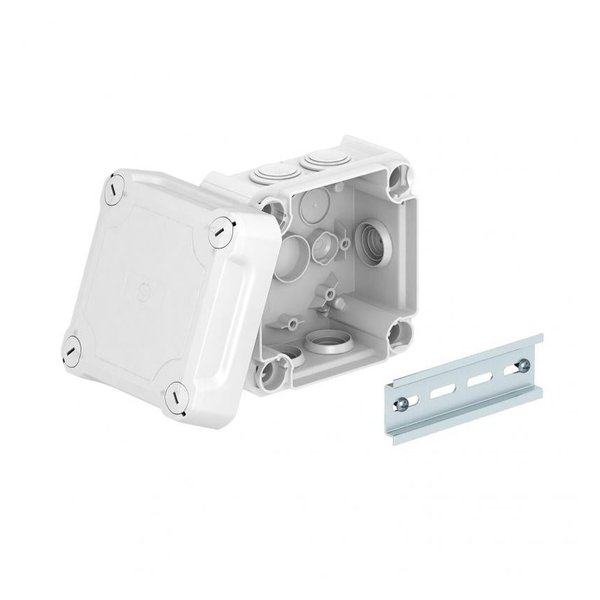

OBO Bettermann T 60 HD LGR — Junction Box With Raised Cover. Manufacturer designation: Junction box T60, plug-in seal, elevated cover. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | T 60 HD LGR |
| Article No. (MPN) | 2007710 |
| Product Category | Enclosures & Junction Boxes |
| Clear internal dimensions | 100x100x65 |
| Protection rating | IP66 |
| Colour | Light grey; RAL 7035 |
| Length | 114 mm |
| Height | 74 mm |
| Halogen-free | yes |
| Entry from rear | yes |
| Nominal voltage | 500 V |
| Expandable | yes |
| Sealable | yes |
| For Ex zone | Without |
| Measured insulation voltage Vi | 500 V |
| Maintain electrical functions | Without |
| Explosion-tested version | no |
| With screening | no |
| Weatherproof | no |
| Protection rating IK code | IK07. |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Shape | Square |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
