Description

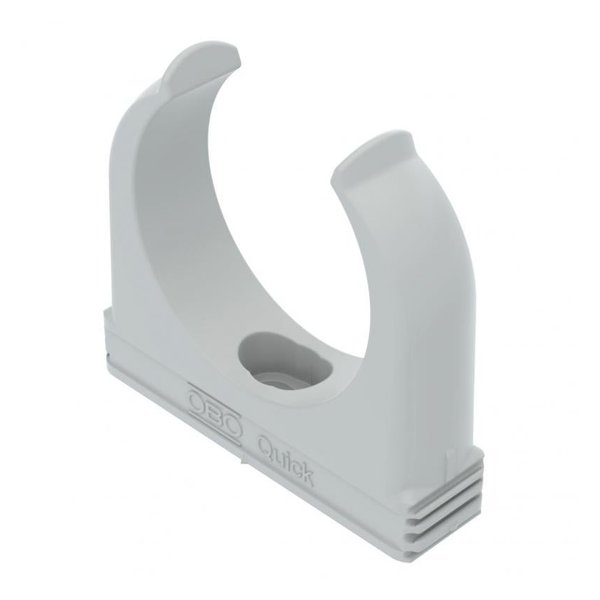

OBO Bettermann 2955 M50 — Quick Clip. Manufacturer designation: Quick clip, light grey. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 2955 M50 |
| Article No. (MPN) | 2149034 |
| Product Category | Cable Support & Routing |
| Nominal size | M16 |
| Dimension A | 70,3 mm |
| Dimension B | 18 mm |
| Dimension H | 63 mm |
| Dimension C | 32 mm |
| Dimension F | 6 mm |
| Dimension E | 12 mm |
| Dimension D | 49 mm |
| Halogen-free | yes |
| Pull-out value | 135 N |
| UV-resistant | no |
| Expandable | yes |
| Closed | no |
| Breaking load | 0,17 kN |
| With inlay | no |
| ROHS-conformant | yes |
| Pipe/cable diameter, min. | 50 mm |
| Pipe/cable diameter, max. | 50 mm |
| Clamping range D, min. | 50 mm |
| Clamping range D, max. | 50 mm |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
