Description

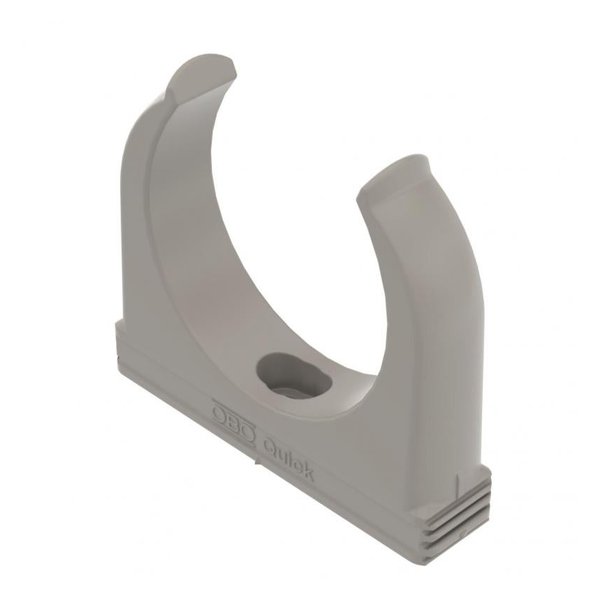

OBO Bettermann 2955 F M63 STGR — Quick Clip. Manufacturer designation: Quick Clip, flame-resistant, stone grey. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 2955 F M63 STGR |
| Article No. (MPN) | 2149339 |
| Product Category | Cable Support & Routing |
| Nominal size | M16 |
| Dimension A | 87,3 mm |
| Dimension B | 20 mm |
| Dimension H | 74,5 mm |
| Dimension C | 43 mm |
| Dimension F | 6 mm |
| Dimension E | 12 mm |
| Dimension D | 61,5 mm |
| Halogen-free | yes |
| Pull-out value | 175 N |
| UV-resistant | no |
| Expandable | yes |
| Closed | no |
| With inlay | no |
| ROHS-conformant | yes |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C |
| Dimension | M63 |
| Material | Polypropylene |
| Colour | Stone grey; RAL 7030 |
| Product series | Quick clip range |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
