Description

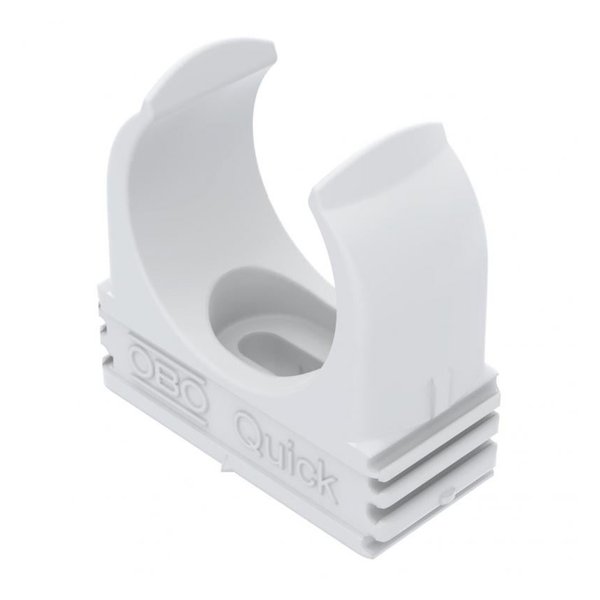

OBO Bettermann 2955 F M25 RW — Quick Clip Flame-resistant. Manufacturer designation: Quick clip, flame-resistant, pure white. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 2955 F M25 RW |
| Article No. (MPN) | 2149363 |
| Product Category | Cable Support & Routing |
| Nominal size | M16 |
| Dimension A | 36,3 mm |
| Dimension B | 16 mm |
| Dimension H | 34 mm |
| Dimension C | 17,5 mm |
| Dimension F | 4,2 mm |
| Dimension E | 12 mm |
| Dimension D | 24,3 mm |
| Halogen-free | yes |
| Pull-out value | 90 N |
| UV-resistant | no |
| Expandable | yes |
| Closed | no |
| With inlay | no |
| ROHS-conformant | yes |
| Clamping range D, min. | 25 mm |
| Clamping range D, max. | 25 mm |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C |
| Dimension | M25 |
| Material | Polypropylene |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
