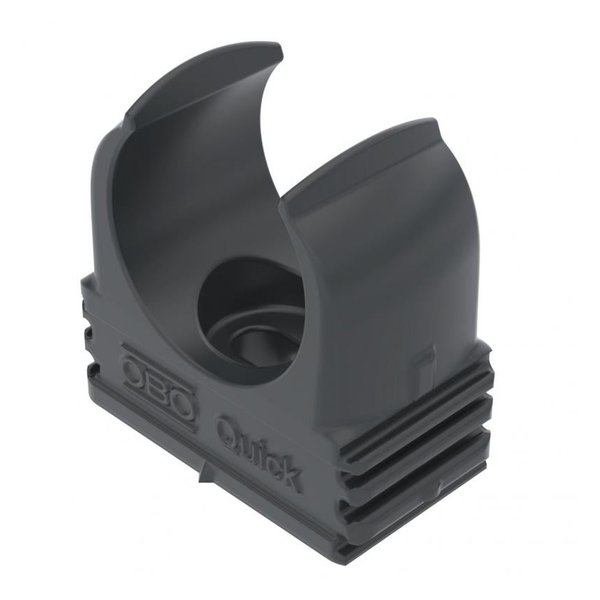

OBO Bettermann 2955 M20 SW — Quick Clip. Manufacturer designation: Quick clip, black. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 2955 M20 SW |
| Article No. (MPN) | 2149563 |
| Product Category | Cable Support & Routing |
| Nominal size | M16 |
| Dimension A | 30,3 mm |
| Dimension B | 16 mm |
| Dimension H | 29,5 mm |
| Dimension C | 14 mm |
| Dimension F | 4,2 mm |
| Dimension E | 9 mm |
| Dimension D | 19,4 mm |
| Halogen-free | yes |
| Pull-out value | 75 N |
| UV-resistant | no |
| Expandable | yes |
| Closed | no |
| With inlay | no |
| ROHS-conformant | yes |
| Dimension | M20 |
| Material | Polypropylene |
| Colour | Jet black; RAL 9005 |
| Product series | BlackLine, Quick clip range |
| Condition | New & original |
| Availability | On request |
