Description

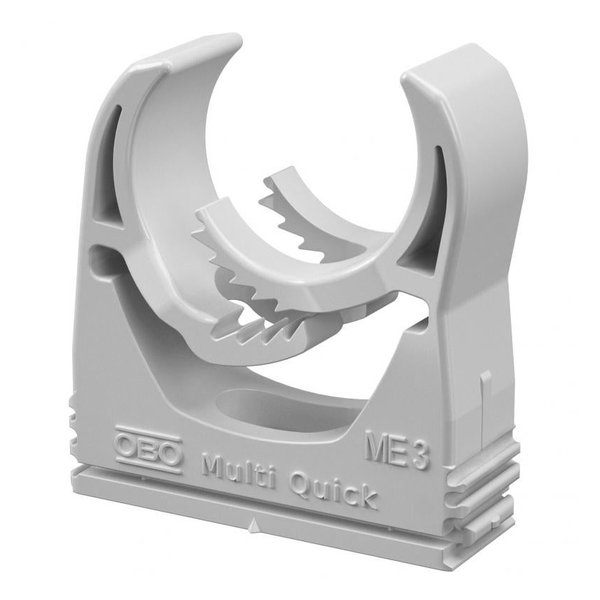

OBO Bettermann M-Quick M32 LGR — Multi-Quick Clip. Manufacturer designation: Multi-Quick clip, metric. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | M-Quick M32 LGR |
| Article No. (MPN) | 2153734 |
| Product Category | Cable Support & Routing |
| Clamping range D, min. | 16 |
| Clamping range D, max. | 20 |
| Colour | Light grey; RAL 7035 |
| Dimension A | 43 mm |
| Dimension B | 15,5 mm |
| Dimension H | 46 mm |
| Dimension F | 4,1 mm |
| Dimension E | 8 mm |
| Halogen-free | yes |
| Pull-out value | 60 N |
| UV-resistant | no |
| Expandable | yes |
| Closed | no |
| With inlay | no |
| ROHS-conformant | yes |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | 25-32mm |
| Material | Polyamide |
| Product series | Quick clip range |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
