Description

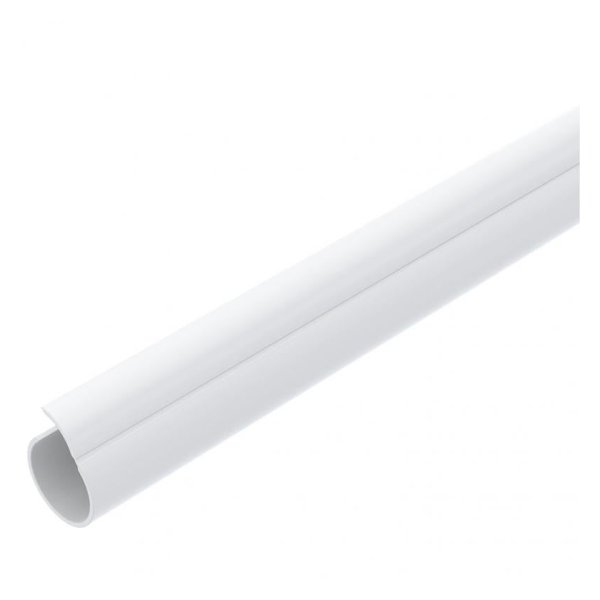

OBO Bettermann 2953 M32 RW — Quick Pipe. Manufacturer designation: Quick-Pipe®, pure white. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 2953 M32 RW |
| Article No. (MPN) | 2153969 |
| Product Category | Cable Support & Routing |
| Length | 2000 |
| Size | M16 |
| Packaging without plastic | yes |
| Dimension t | 1,7 mm |
| Dimension C | 17 mm |
| Dimension D | 32 mm |
| Halogen-free | no |
| Flame-resistant version | no |
| Concealed | no |
| Surface-mounted | yes |
| Concrete installation | no |
| Machines and system installation | yes |
| Underfloor installation (screed) | no |
| Installation outdoors | no |
| Installation on wood | yes |
| Installation in the earth | no |
| With sleeve | no |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 60 °C |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
