Description

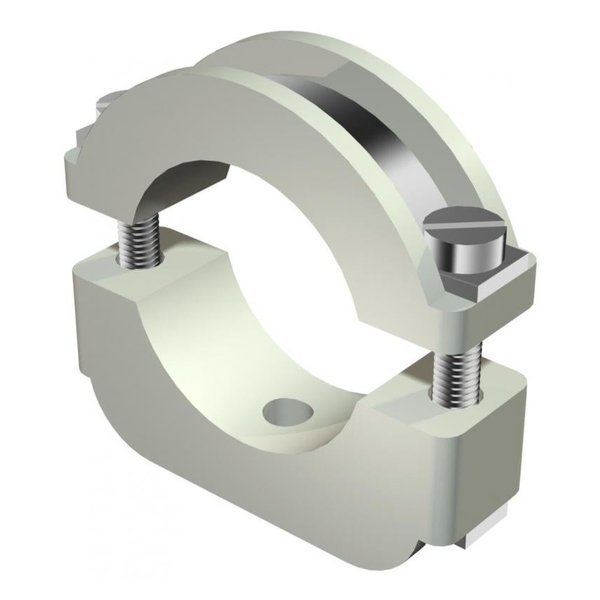

OBO Bettermann 3022 LGR — Clip Blitz-ISO. Manufacturer designation: Lightning ISO clip, screw-on. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 3022 LGR |
| Article No. (MPN) | 2158345 |
| Product Category | Earthing & Lightning Protection |
| Clamping range D, max. | 12 |
| Clamping range D, min. | 10 |
| Packaging without plastic | yes |
| Dimension A | 57 mm |
| Dimension B | 47 mm |
| Dimension H | 56 mm |
| Dimension Ho (mm) | 22 |
| Dimension Hu (mm) | 22 |
| Dimension l | 35 mm |
| Dimension x | 10 mm |
| Dimension D | 34 mm |
| Halogen-free | yes |
| UV-resistant | no |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Bolt | M5 x 35 |
| Version for | Closed |
| ROHS-conformant | Exempt |
| Dimension | 24-34mm |
| Material | Polystyrene |
| Condition | New & original |
| Availability | On request |
