Description

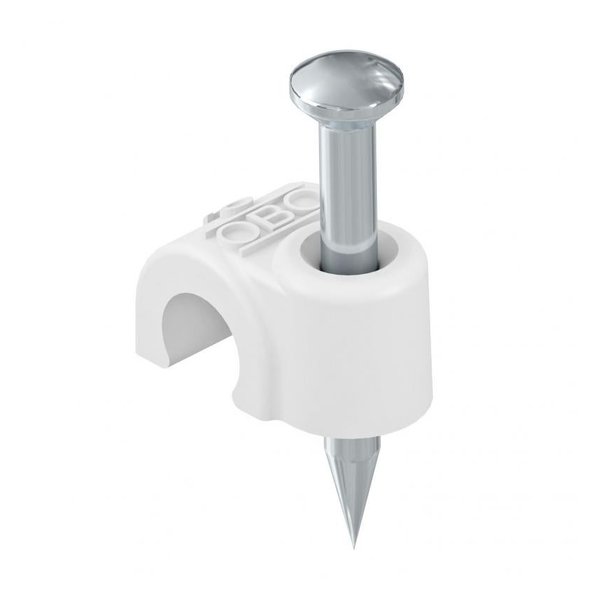

OBO Bettermann 2020 40 RW — ISO Nail Clip. Manufacturer designation: ISO nail clip 2020, white. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 2020 40 RW |
| Article No. (MPN) | 2226405 |
| Product Category | Cable Support & Routing |
| For cable diameter | 20 |
| Nail length | 40 |
| For nail diameter | 2,0×40 |
| Colour | Pure white; RAL 9010 |
| Impact-resistant | no |
| Halogen-free | yes |
| Hardened | yes |
| Double clip | no |
| With nail | yes |
| Shape | Round (for round conductor) |
| ROHS-conformant | yes |
| Dimension | 20mm, L40 |
| Material | Polypropylene |
| Pipe locking | no |
| Product series | Nagel-Fix |
| Dimension L | 31 mm |
| Dimension B | 14 mm |
| Dimension H | 24,5 mm |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
