Description

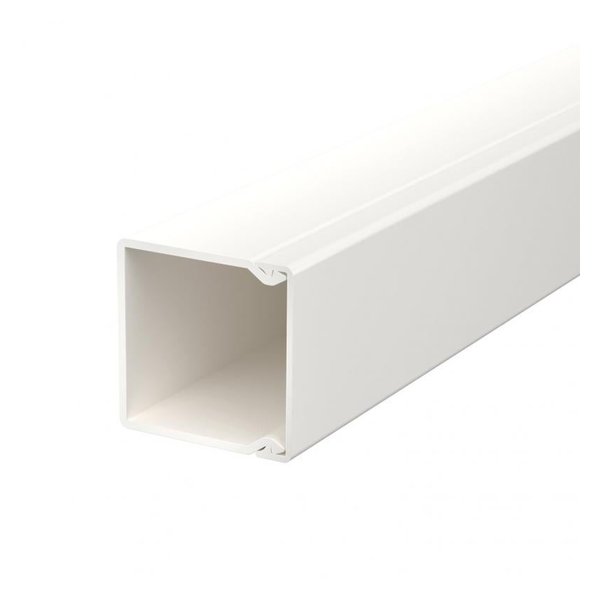

OBO Bettermann WDK40040RW — Trunking Wdk. Manufacturer designation: Trunking, type WDK 40040. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | WDK40040RW |
| Article No. (MPN) | 6191126 |
| Product Category | Cable Support & Routing |
| Length | 2000 |
| Height | 40 |
| Colour | Cream; RAL 9001 |
| Packaging without plastic | yes |
| Maintain electrical functions | no |
| Usable cross-section | 1314 mm² |
| Halogen-free | no |
| Cable retaining clip | no |
| Protective film | no |
| Duct connector | no |
| Protection rating | IP30 |
| Weatherproof | yes |
| Delivery on a roll | no |
| Protection rating IK code | IK04 |
| Version, cable trunking cover | Loose |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 40x40x2000 |
| Material | Polyvinylchloride |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
