Description

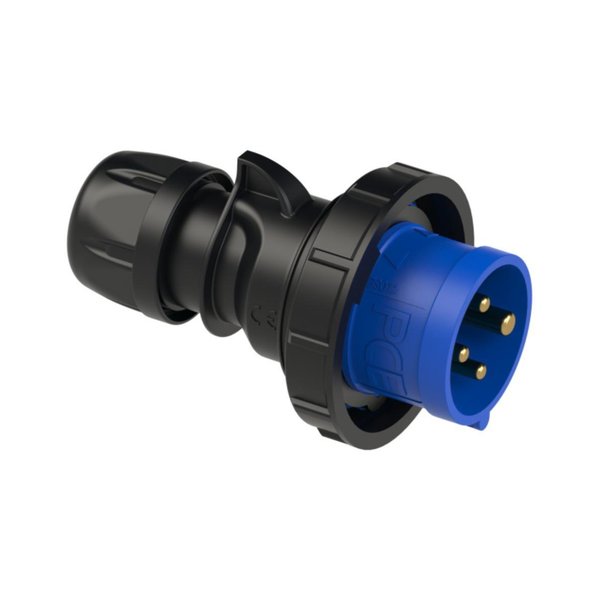

PCE 01492-9 — CEE Plug. Manufacturer designation: CEE-plug 20A 3P4W 9h IP67 UL. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | PCE |
|---|---|
| Article No. (MPN) | 01492-9 |
| Product Category | Plugs & Sockets (CEE) |
| Housing material | PA6 |
| Rated current | 16A/20A |
| Number of poles | 3P4W (4p) |
| Clock position | 9h |
| Rated voltage | 250VAC |
| Contacts | brass |
| Connection technology | screw terminals |
| IP protection class | IP67 |
| UL-product category | QLHN / QLHN7 |
| UL-file number | E232901 |
| Https | //www.pcelectric.at/shop/en/?func=detail&artnr |
| Condition | New & original |
| Availability | On request |
Download official PCE datasheet (PDF)
Independent distributor — not an authorised PCE dealer. All parameters are taken from the official manufacturer documentation.
