Description

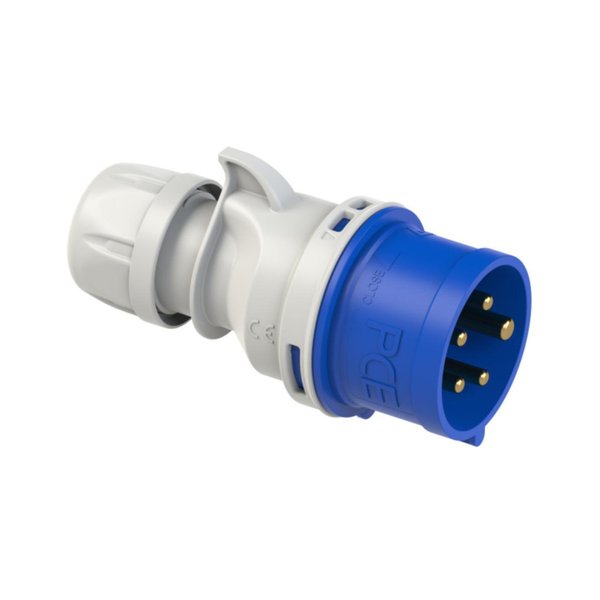

PCE 025-9 — CEE Plug. Manufacturer designation: CEE-plug 32A 5p 9h IP44 SHARK. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | PCE |
|---|---|
| Article No. (MPN) | 025-9 |
| Product Category | Plugs & Sockets (CEE) |
| Housing material | PA6 |
| Rated current | 32A |
| Number of poles | 5 (3P+N+PE) |
| Clock-position | 9h |
| Rated voltage/frequency | 120/208V~ – 144/250V~ / |
| Contacts | brass |
| Connection technology | screw terminals |
| IP protection class | IP44/IP54 |
| Https | //www.pcelectric.at/shop/en/?func=detail&artnr |
| Condition | New & original |
| Availability | On request |
Download official PCE datasheet (PDF)
Independent distributor — not an authorised PCE dealer. All parameters are taken from the official manufacturer documentation.
