Description

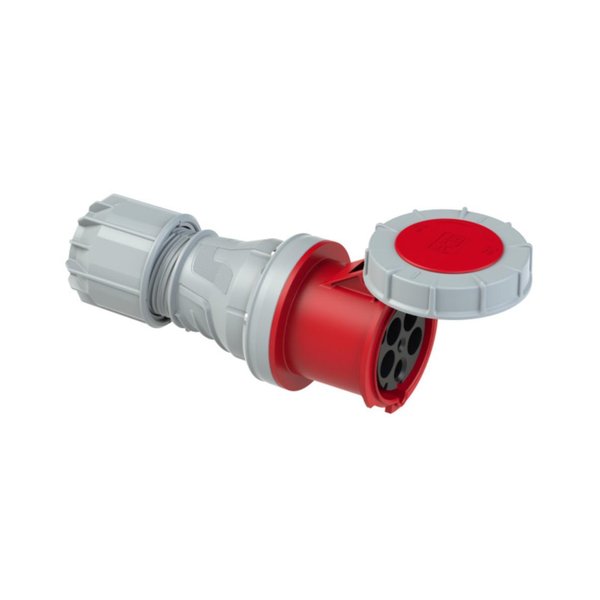

PCE 2455-6 — CEE Coupler. Manufacturer designation: CEE-connector 125A 5p 6h IP67 pilot contact. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | PCE |
|---|---|
| Article No. (MPN) | 2455-6 |
| Product Category | Plugs & Sockets (CEE) |
| Housing material | PA6 |
| Rated current | 125A |
| Number of poles | 5 (3P+N+PE) |
| Clock-position | 6h |
| Rated voltage/frequency | 200/346V~ – 240/415V~ / |
| Contacts | brass, with lamellar spring (CuBe) |
| Connection technology | frame terminals with |
| IP protection class | IP66/IP67 |
| Extra | pilot contact with screw terminal (rated |
| Https | //www.pcelectric.at/shop/en/?func=detail&artnr |
| Condition | New & original |
| Availability | On request |
Download official PCE datasheet (PDF)
Independent distributor — not an authorised PCE dealer. All parameters are taken from the official manufacturer documentation.
