Description

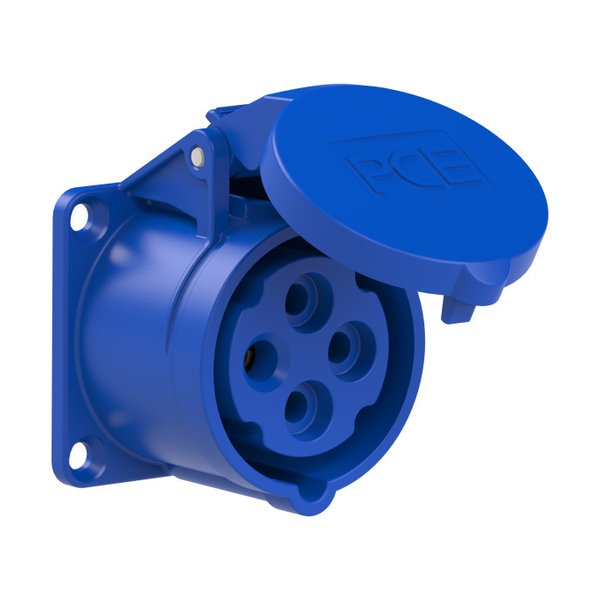

PCE 314-9f6 — CEE-flanged Socket Straight. Manufacturer designation: CEE-flanged socket straight (60x60mm) 16A. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | PCE |
|---|---|
| Article No. (MPN) | 314-9f6 |
| Product Category | Plugs & Sockets (CEE) |
| Housing material | PA6 |
| Rated current | 16A |
| Number of poles | 4 (3P+PE) |
| Clock-position | 9h |
| Rated voltage/frequency | 200-250V~ / 50+60Hz |
| Contacts | brass |
| Connection technology | screw terminals |
| Dimensions (flange/fixing center) | 60×60 mm / |
| IP protection class | IP44 |
| Condition | New & original |
| Availability | On request |
Download official PCE datasheet (PDF)
Independent distributor — not an authorised PCE dealer. All parameters are taken from the official manufacturer documentation.
