Description

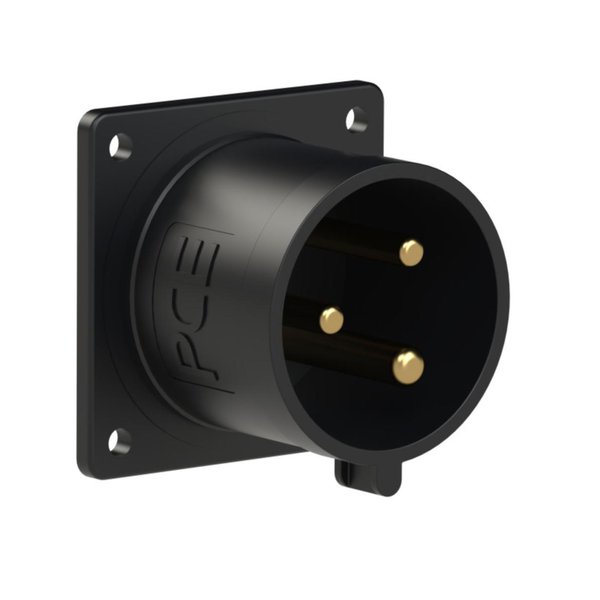

PCE 623-7 — Panel-Mounted CEE Appliance Inlet. Manufacturer designation: CEE-flanged plug 70×70 straight 32A 3p 7h IP44. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | PCE |
|---|---|
| Article No. (MPN) | 623-7 |
| Product Category | Plugs & Sockets (CEE) |
| Housing material | PA6 |
| Rated current | 32A |
| Number of poles | 3 (2P+PE) |
| Clock-position | 7h |
| Rated voltage/frequency | 480-500V~ / 50+60Hz |
| Contacts | brass |
| Connection technology | screw terminals |
| Dimensions (flange/fixing center) | 70×70 mm / |
| IP protection class | IP44 |
| Https | //www.pcelectric.at/shop/en/?func=detail&artnr |
| Condition | New & original |
| Availability | On request |
Download official PCE datasheet (PDF)
Independent distributor — not an authorised PCE dealer. All parameters are taken from the official manufacturer documentation.
