Description

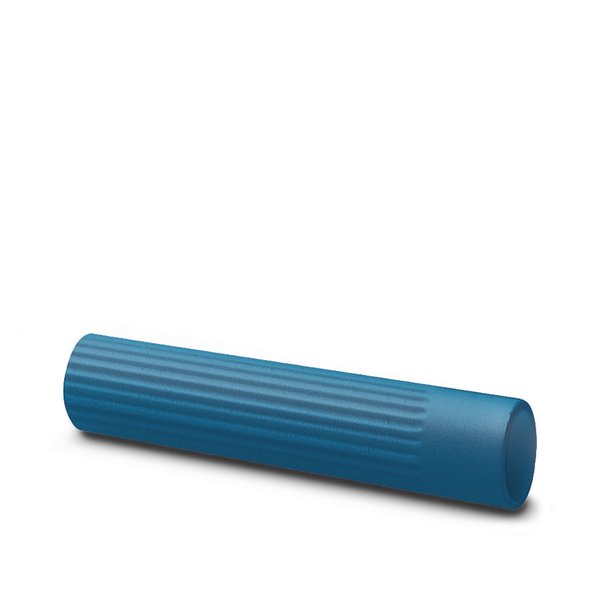

Phoenix Contact 0201689 — MPS-IH BU. Manufacturer designation: MPS-IH BU – Insulating sleeve – 0201689. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0201689 |
| Product Category | Terminals & Connectors |
| Product type | Insulating sleeve |
| Connection method | Spring connection |
| Width | 4.6 mm |
| Height | 27.5 mm |
| Depth | 27.5 mm |
| Color | blue (RAL 5015) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Insulating material | PA |
| Static insulating material application in cold | -40 °C |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (assembly) | -5 °C … 70 °C |
| Ambient temperature (actuation) | -5 °C … 70 °C |
| Permissible humidity (storage/transport) | 30 % … 70 % |
| Item number | 0201689 |
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Sales key | BE19 |
| Product key | BE1Z3X |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
