Description

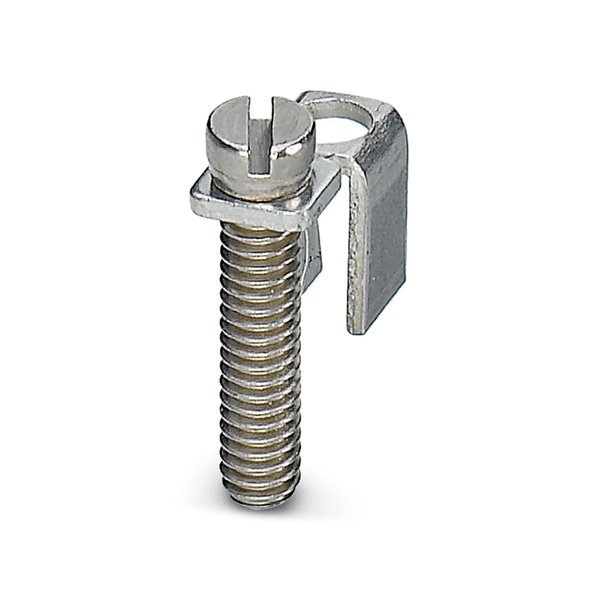

Phoenix Contact 0202206 — KB- 8. Manufacturer designation: KB- 8 – Chain bridge – 0202206. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0202206 |
| Product Category | Terminals & Connectors |
| Product type | Screw bridge |
| Pitch | 8 mm |
| Color | silver-colored |
| Material | Copper |
| Mounting type | Screw mounting |
| Item number | 0202206 |
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Sales key | BE19 |
| Product key | BE1Z2X |
| Gtin | 4017918099008 |
| Weight per piece (including packing) | 2.815 g |
| Weight per piece (excluding packing) | 2.798 g |
| Customs tariff number | 85369095 |
| Country of origin | CN |
| Eclass-13.0 | 27250303 |
| Eclass-15.0 | 27250303 |
| Etim 10.0 | EC000489 |
| Unspsc 21.0 | 39121400 |
| EU RoHS Fulfills EU RoHS substance requirements | Yes |
| EF3.1 Climate Change CO2e kg | 0.068 kg CO2e |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
