Description

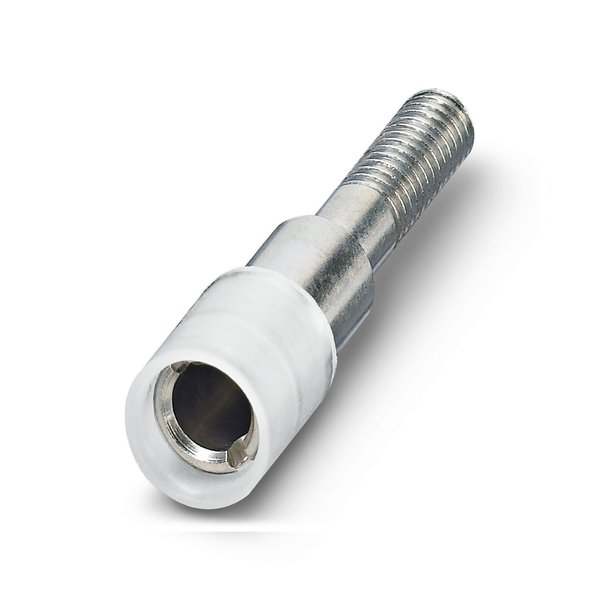

Phoenix Contact 0303312 — PSBJ 4/15/6 WH. Manufacturer designation: PSBJ 4/15/6 WH – Test plug strip – 0303312. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0303312 |
| Product Category | Terminals & Connectors |
| Product type | Test socket |
| Connection method | Screw connection |
| Dimensional drawing Width | 6 mm |
| Height | 6 mm |
| Pin diameter | 4 mm |
| Color | white (RAL 9010) |
| Material | Brass |
| Insulating material | PA |
| Contact material | PE-LD, silver-plated brass |
| Ambient temperature (operation) | -40 °C … 80 °C |
| Item number | 0303312 |
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Sales key | BE19 |
| Product key | BE1Z3X |
| Gtin | 4017918000424 |
| Weight per piece (including packing) | 3.385 g |
| Weight per piece (excluding packing) | 3.26 g |
| Customs tariff number | 85366990 |
| Country of origin | PL |
| Eclass-13.0 | 27250304 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
