Description

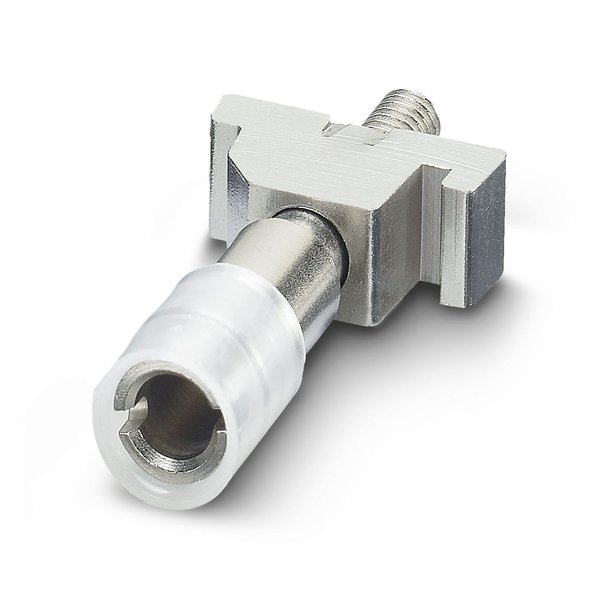

Phoenix Contact 0305394 — PSBJ-GSK/S FARBLOS. Manufacturer designation: PSBJ-GSK/S FARBLOS – Test plug strip – 0305394. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0305394 |
| Product Category | Terminals & Connectors |
| Product type | Test socket |
| Test socket torque | 0.6 |
| Connection method | Screw connection |
| Width | 5 mm |
| Height | 5 mm |
| Depth | 30 mm |
| Depth on NS 35/7,5 | 7 mm |
| Pin diameter | 4.1 mm |
| Color | transparent |
| Material | Brass |
| Insulating material | PA |
| Contact material | PE-LD, silver-plated brass |
| Ambient temperature (operation) | -40 °C … 80 °C |
| Item number | 0305394 |
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Sales key | BE19 |
| Product key | BE1Z3X |
| Gtin | 4017918000899 |
| Weight per piece (including packing) | 6.33 g |
| Weight per piece (excluding packing) | 6.204 g |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
