Description

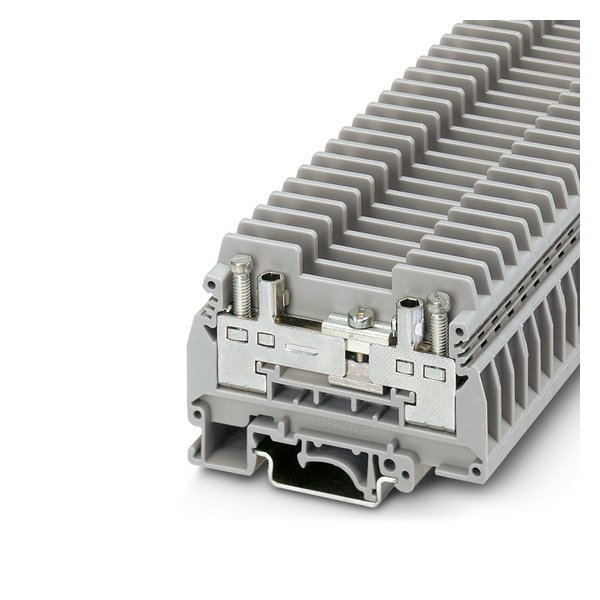

Phoenix Contact 0311087 — URTK/S. Manufacturer designation: URTK/S – Test disconnect terminal block – 0311087. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0311087 |
| Product Category | Terminals & Connectors |
| Product type | Test disconnect terminal block |
| Overvoltage category | III |
| Rated surge voltage | 6 kV |
| Maximum power dissipation for nominal condition | 1.31 W |
| Nominal cross section | 6 mm² |
| Tightening torque disconnect slide | M3 0.6 … 0.8 Nm |
| Connection method | Screw connection |
| Screw thread | M4 |
| Tightening torque | 1.2 … 1.5 Nm |
| Stripping length | 13 mm |
| Internal cylindrical gage | A5 |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross-section rigid | 0.5 mm² … 10 mm² |
| Cross section AWG | 20 … 8 (converted acc. to IEC) |
| Conductor cross-section flexible | 0.5 mm² … 6 mm² |
| Conductor cross-section, flexible [AWG] | 20 … 10 (converted acc. to IEC) |
| 2 conductors with same cross section, rigid | 0.5 mm² … 2.5 mm² |
| 2 conductors with same cross section, flexible | 0.5 mm² … 6 mm² |
| Nominal current | 41 A |
| Maximum load current | 57 A (with 10 mm² conductor cross-section) |
| Nominal voltage | 400 V |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
