Description

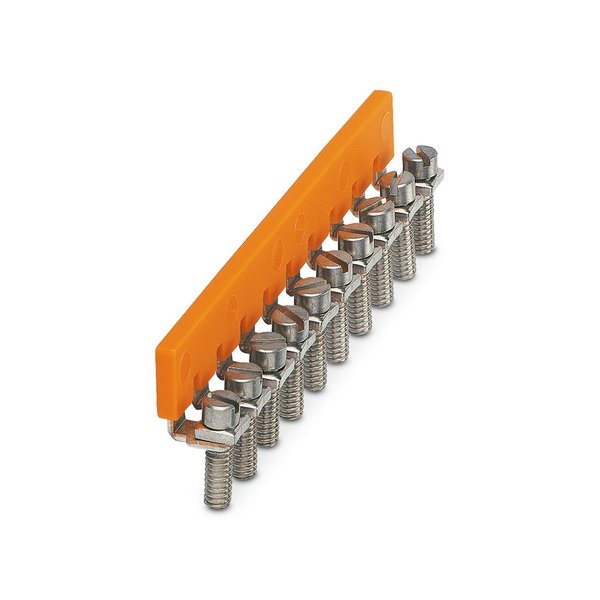

Phoenix Contact 0311663 — FB 10- URTK/SP. Manufacturer designation: FB 10- URTK/SP – Fixed bridge – 0311663. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0311663 |
| Product Category | Terminals & Connectors |
| Product type | Screw bridge |
| Number of positions | 10 |
| Pitch | 8.2 mm |
| Tightening torque | 1.2 … 1.5 Nm |
| Color | silver-colored |
| Material | Copper |
| Coating | tin-plated |
| Ambient temperature (assembly) | -5 °C … 70 °C |
| Ambient temperature (actuation) | -5 °C … 70 °C |
| Permissible humidity (operation) | 20 % … 90 % |
| Permissible humidity (storage/transport) | 30 % … 70 % |
| Mounting type | Screw mounting |
| Item number | 0311663 |
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Sales key | BE19 |
| Product key | BE1Z2X |
| Gtin | 4017918001599 |
| Weight per piece (including packing) | 25.7 g |
| Weight per piece (excluding packing) | 25.01 g |
| Customs tariff number | 85369095 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
