Description

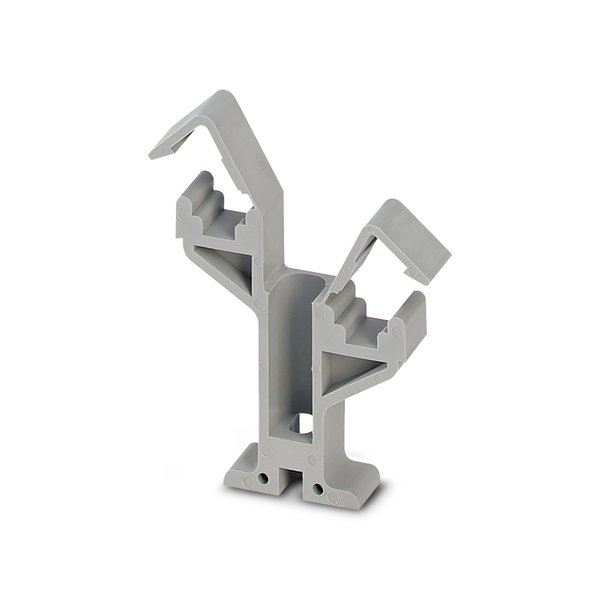

Phoenix Contact 0404431 — AB2/SS. Manufacturer designation: AB2/SS – Support bracket – 0404431. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0404431 |
| Product Category | Terminals & Connectors |
| Product type | Support bracket |
| Number of positions | 2.00 |
| Nominal current I N | 0 A |
| Dimensional drawing Width | 10 mm |
| Height | 42 mm |
| Depth | 48 mm |
| Length | 42 mm |
| Diameter | 4.5 mm |
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Components | free from silicone and halogen |
| Ambient temperature (assembly) | -5 °C … 70 °C |
| Ambient temperature (actuation) | -5 °C … 70 °C |
| Permissible humidity (storage/transport) | 30 % … 70 % |
| Mounting type | Direct mounting |
| Item number | 0404431 |
| Packing unit | 10 pc |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
