Description

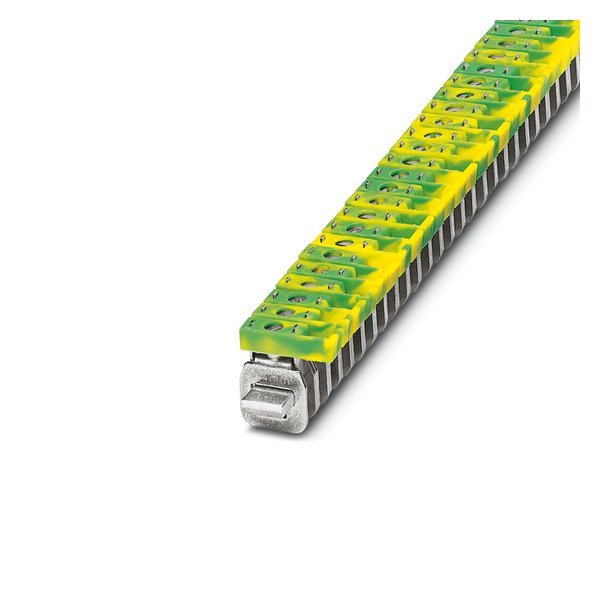

Phoenix Contact 0421045 — AKG 4 GNYE-EX. Manufacturer designation: AKG 4 GNYE-EX – Connection terminal block – 0421045. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0421045 |
| Product Category | Terminals & Connectors |
| Product type | Installation terminal block |
| Maximum load current | 41 A |
| Maximum power dissipation for nominal condition | 1.02 W |
| Nominal current I N | 32 A |
| Nominal cross section | 4 mm² |
| Connection method | Screw connection |
| Screw thread | M4 |
| Tightening torque | 1.5 … 1.8 Nm |
| Stripping length | 16 mm |
| Conductor cross-section rigid | 0.5 mm² … 6 mm² |
| Cross section AWG | 20 … 10 (converted acc. to IEC) |
| Conductor cross-section flexible | 0.5 mm² … 4 mm² |
| Conductor cross-section, flexible [AWG] | 20 … 12 (converted acc. to IEC) |
| 2 conductors with same cross section, rigid | 0.5 mm² … 2.5 mm² |
| 2 conductors with same cross section, flexible | 0.5 mm² … 2.5 mm² |
| Nominal current | 32 A |
| Nominal voltage | 300 V |
| Identification | II 2 G Ex eb IIC Gb |
| Operating temperature range | -60 °C … 125 °C |
| Ex-certified accessories | 0404415 AB/SS-EX |
| Output | (Permanent) |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
