Description

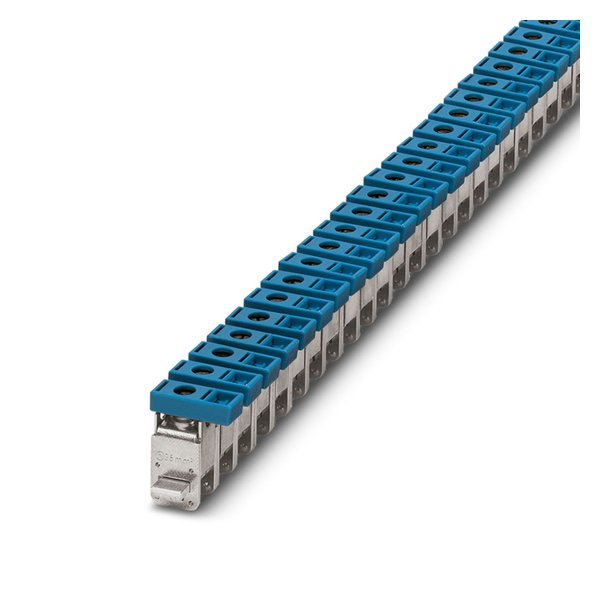

Phoenix Contact 0424013 — AKG 35 BU. Manufacturer designation: AKG 35 BU – Connection terminal block – 0424013. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0424013 |
| Product Category | Terminals & Connectors |
| Product type | Installation terminal block |
| Maximum load current | 125 A (with 35 mm² conductor cross-section) |
| Maximum power dissipation for nominal condition | 4.06 W |
| Nominal current I N | 125 A |
| Current carrying capacity of the neutral busbar | 140 A |
| Nominal cross section | 35 mm² |
| Connection method | Screw connection |
| Screw thread | M6 |
| Tightening torque | 3.2 … 3.7 Nm |
| Stripping length | 16 mm |
| Connection in acc. with standard | IEC / EN |
| Conductor cross-section rigid | 2.5 mm² … 35 mm² |
| Cross section AWG | 12 … 2 (converted acc. to IEC) |
| Conductor cross-section flexible | 2.5 mm² … 35 mm² |
| Conductor cross-section, flexible [AWG] | 12 … 2 (converted acc. to IEC) |
| 2 conductors with same cross section, rigid | 1.5 mm² … 16 mm² |
| 2 conductors with same cross section, flexible | 1.5 mm² … 16 mm² |
| Nominal current | 125 A |
| Nominal voltage | 300 V |
| Dimensional drawing Width | 14.3 mm |
| Height | 27.3 mm |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
