Description

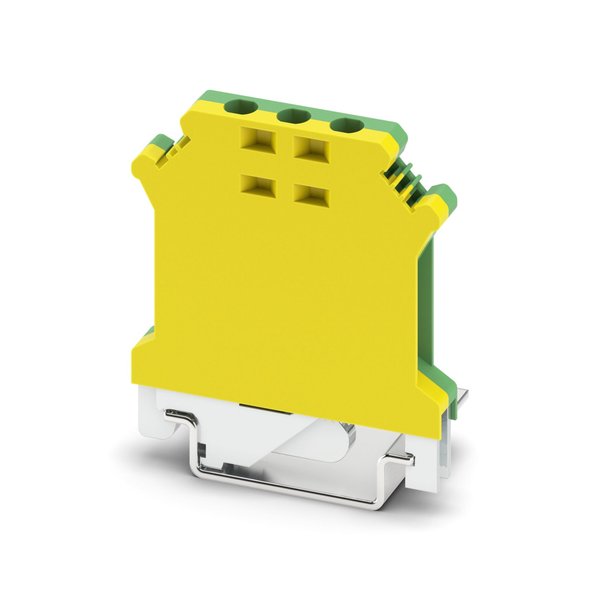

Phoenix Contact 0441012 — USLKG 4. Manufacturer designation: USLKG 4 – Protective conductor terminal block – 0441012. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0441012 |
| Product Category | Terminals & Connectors |
| Product type | Ground terminal block |
| Product family | USLKG |
| Overvoltage category | III |
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 0 W |
| Grounding foot | Yes |
| Connection method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.6 … 0.8 Nm |
| Stripping length | 9 mm |
| Connection in acc. with standard | IEC 60947-7-2 |
| Conductor cross-section rigid | 0.2 mm² … 4 mm² |
| Cross section AWG | 24 … 12 (converted acc. to IEC) |
| Conductor cross-section flexible | 0.2 mm² … 4 mm² |
| Conductor cross-section, flexible [AWG] | 24 … 12 (converted acc. to IEC) |
| Nominal cross section | 4 mm² |
| Width | 6.2 mm |
| Height | 42.5 mm |
| Depth on NS 32 | 52 mm |
| Depth on NS 35/7,5 | 47 mm |
| Depth on NS 35/15 | 54.5 mm |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
