Description

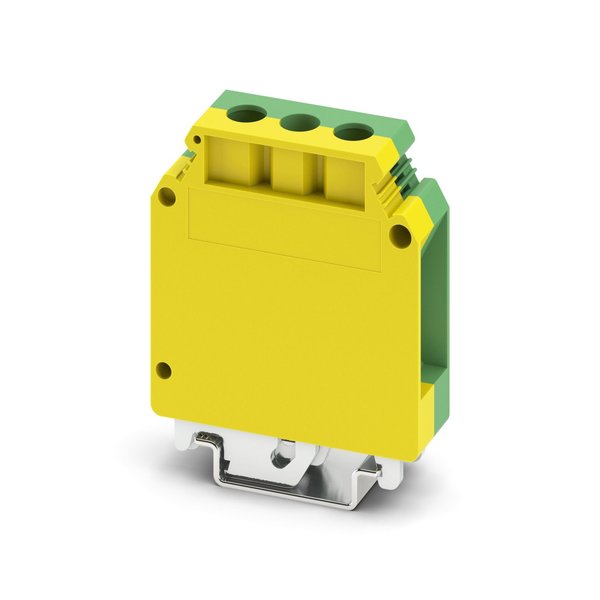

Phoenix Contact 0444019 — USLKG 35. Manufacturer designation: USLKG 35 – Protective conductor terminal block – 0444019. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0444019 |
| Product Category | Terminals & Connectors |
| Product type | Ground terminal block |
| Product family | USLKG |
| Overvoltage category | III |
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 4.06 W |
| Grounding foot | Yes |
| Nominal cross section | 35 mm² |
| Connection method | Screw connection |
| Screw thread | M6 |
| Tightening torque | 3.2 … 3.7 Nm |
| Stripping length | 15 mm |
| Connection in acc. with standard | IEC 60947-7-2 |
| Conductor cross-section rigid | 0.75 mm² … 50 mm² |
| Cross section AWG | 18 … 2 (converted acc. to IEC) |
| Conductor cross-section flexible | 0.75 mm² … 35 mm² |
| Conductor cross-section, flexible [AWG] | 18 … 2 (converted acc. to IEC) |
| Width | 15.2 mm |
| Height | 50 mm |
| Depth on NS 32 | 67 mm |
| Depth on NS 35/7,5 | 62 mm |
| Depth on NS 35/15 | 69.5 mm |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
