Description

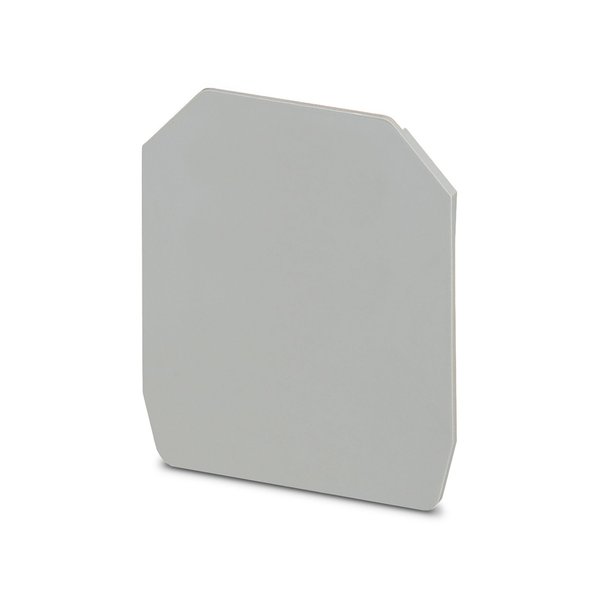

Phoenix Contact 0704021 — D-UHSK 2000. Manufacturer designation: D-UHSK 2000 – End cover – 0704021. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0704021 |
| Product Category | Terminals & Connectors |
| Product type | End cover |
| Ambient temperature (assembly) | -5 °C … 70 °C |
| Ambient temperature (actuation) | -5 °C … 70 °C |
| Permissible humidity (operation) | 20 % … 90 % |
| Permissible humidity (storage/transport) | 30 % … 70 % |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 |
| Static insulating material application in cold | -40 °C |
| Width | 2 mm |
| Height | 52 mm |
| Depth | 60.6 mm |
| Depth on NS 35/7,5 | 70.5 mm |
| Item number | 0704021 |
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Sales key | BE19 |
| Product key | BE1Z1X |
| Gtin | 4017918003654 |
| Weight per piece (including packing) | 5.6 g |
| Weight per piece (excluding packing) | 5.5 g |
| Customs tariff number | 85389099 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
