Description

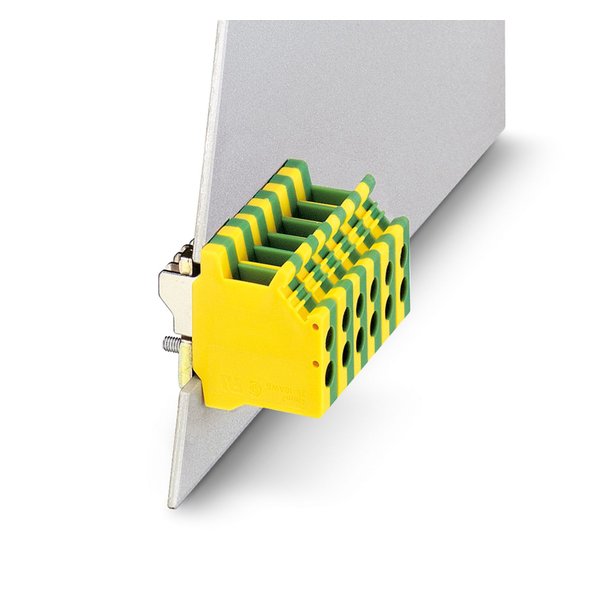

Phoenix Contact 0708315 — DFK 4-PE. Manufacturer designation: DFK 4-PE – PE panel panel feed-through terminal block – 0708315. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0708315 |
| Product Category | Terminals & Connectors |
| Product type | Panel feed-through terminal block |
| Product family | DFK 4-PE |
| Pitch | 6 mm |
| Overvoltage category | III |
| Nominal current I N | 17.5 A |
| Nominal voltage U N | 400 V |
| Rated voltage (III/3) | 400 V |
| Rated surge voltage (III/3) | 4 kV |
| Nominal cross section | 4 mm² |
| Connection method | Screw connection with tension sleeve |
| Conductor cross-section rigid | 0.2 mm² … 6 mm² |
| Conductor cross-section flexible | 0.2 mm² … 4 mm² |
| 2 conductors with same cross section, rigid | 0.2 mm² … 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² … 1.5 mm² |
| Internal cylindrical gage | A4 |
| Stripping length | 8 mm |
| Tightening torque | 0.6 Nm … 0.8 Nm |
| Contact material | Cu alloy |
| Surface characteristics | tin-plated |
| Color (Housing) | green-yellow () |
| Insulating material | PA |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
