Description

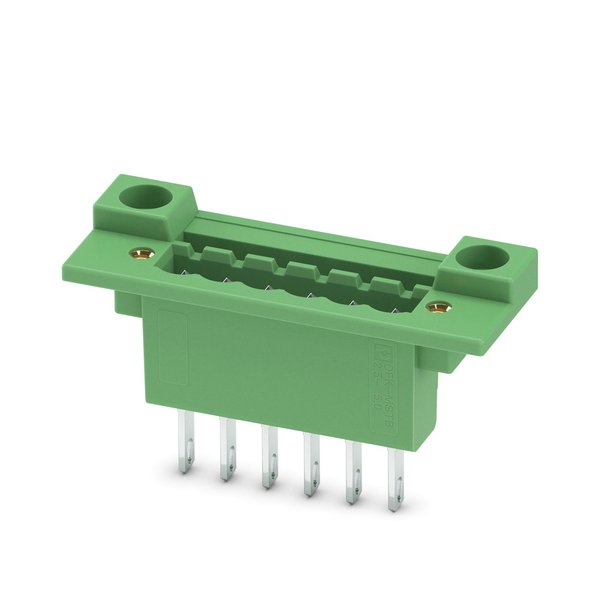

Phoenix Contact 0710060 — DFK-MSTB 2. Manufacturer designation: DFK-MSTB 2,5/ 6-GF – Feed-through header – 0710060. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0710060 |
| Product Category | Terminals & Connectors |
| Product type | Feed-through header |
| Product family | DFK-MSTB 2,5/..-GF |
| Product line | COMBICON Connectors M |
| Type | Feed-through header |
| Pitch | 5 mm |
| Mounting type | Threaded flange |
| Pin layout | Linear pinning |
| Nominal current I N | 12 A |
| Nominal voltage U N | 320 V |
| Contact resistance | 1.5 mΩ |
| Rated voltage (III/3) | 320 V |
| Rated surge voltage (III/3) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Rated surge voltage (III/2) | 4 kV |
| Rated voltage (II/2) | 630 V |
| Rated surge voltage (II/2) | 4 kV |
| Tightening torque | 0.3 Nm |
| Screw | 0708263 DFK-MSTB SS for housing walls of up to 6 mm thick |
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface contact area (top layer) | Tin (3 µm – 6 µm Sn) |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
