Description

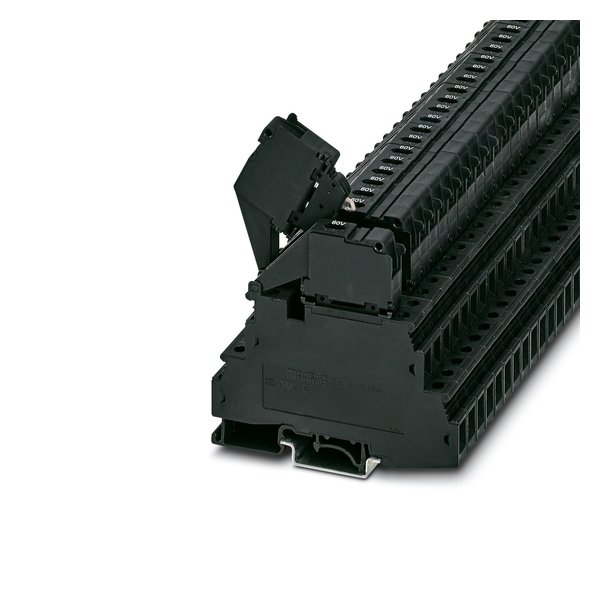

Phoenix Contact 0711580 — UKK 5-HESILED 60. Manufacturer designation: UKK 5-HESILED 60 (5X20) – Fuse modular terminal block – 0711580. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0711580 |
| Product Category | Circuit Breakers |
| Order information | Fuse-link not supplied as standard |
| Product type | Fuse terminal block |
| Overvoltage category | III |
| Fuse type | Glass / ceramics / … |
| Rated surge voltage | 6 kV |
| Maximum power dissipation for nominal condition | 1.02 W |
| Fuse | G / 5 x 20 |
| Nominal cross section | 4 mm² |
| Connection method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.5 … 0.8 Nm |
| Stripping length | 8 mm |
| Internal cylindrical gage | A4 |
| Connection in acc. with standard | IEC / EN |
| Conductor cross-section rigid | 0.2 mm² … 4 mm² |
| Cross section AWG | 24 … 12 (converted acc. to IEC) |
| Conductor cross-section flexible | 0.2 mm² … 4 mm² |
| Conductor cross-section, flexible [AWG] | 24 … 12 (converted acc. to IEC) |
| 2 conductors with same cross section, rigid | 0.2 mm² … 1.5 mm² |
| Nominal current | 32 A |
| Maximum load current | 32 A |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
