Description

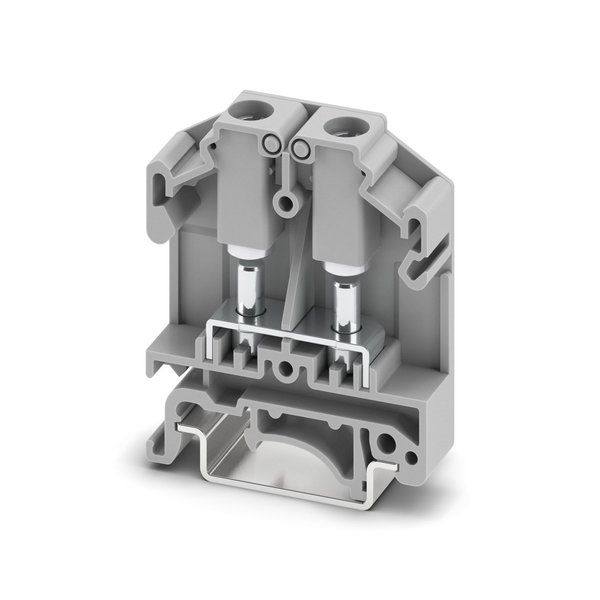

Phoenix Contact 0790404 — OTTA 6-P/P. Manufacturer designation: OTTA 6-P/P – Bolt connection terminal block – 0790404. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0790404 |
| Product Category | Terminals & Connectors |
| Product type | Bolt connection terminal block |
| Product family | OTTA |
| Overvoltage category | III |
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 1.31 W |
| Nominal cross section | 6 mm² |
| Connection method | Bolt connection |
| Screw thread | M4 |
| Tightening torque | 1.5 … 1.8 Nm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Nominal current | 41 A |
| Maximum load current | 41 A (with 6 mm² conductor cross-section) |
| Nominal voltage | 800 V (the nominal voltage applies to insulated cable lugs) |
| Cross section | 0.1 mm² … 6 mm² |
| Cross section range AWG | 24 … 10 (converted acc. to IEC) |
| Hole diameter | 4.3 mm |
| Width | 9.6 mm |
| Bolt diameter | 4 mm |
| Identification color of ring cable lugs : red | 1.5 mm² |
| Identification color of ring cable lugs : blue | 2.5 mm² |
| Identification color of ring cable lugs : yellow | 6 mm² |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
