Description

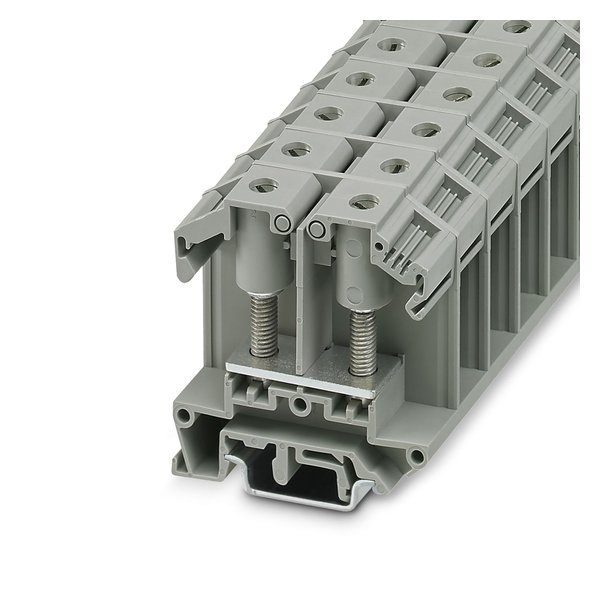

Phoenix Contact 0790491 — OTTA 25-M6. Manufacturer designation: OTTA 25-M6 – Feed-through terminal block – 0790491. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0790491 |
| Product Category | Terminals & Connectors |
| Product type | Bolt connection terminal block |
| Product family | OTTA |
| Overvoltage category | III |
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 3.26 W |
| Nominal cross section | 25 mm² |
| Connection method | Bolt connection |
| Connection in acc. with standard | IEC 60947-7-1 |
| Nominal current | 101 A |
| Maximum load current | 101 A (with 25 mm² conductor cross-section) |
| Nominal voltage | 800 V (the nominal voltage applies to insulated cable lugs) |
| Cross section | 1.5 mm² … 25 mm² |
| Cross section range AWG | 16 … 4 (converted acc. to IEC) |
| Hole diameter | 6.5 mm |
| Width | 16 mm |
| Bolt diameter | 6 mm |
| Screw thread | M6 |
| Tightening torque | 3.2 … 3.7 Nm |
| End cover width | 2 mm |
| Height | 60 mm |
| Depth on NS 32 | 69.5 mm |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
