Description

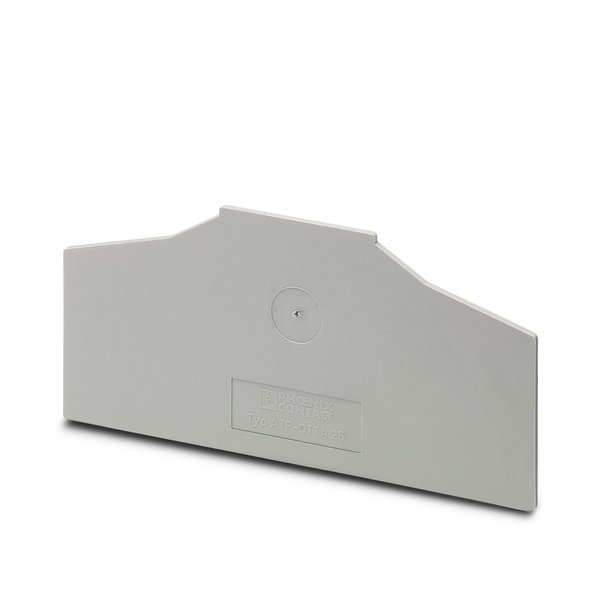

Phoenix Contact 0790501 — ATP-OTTA 25. Manufacturer designation: ATP-OTTA 25 – Partition plate – 0790501. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0790501 |
| Product Category | Terminals & Connectors |
| Product type | Partition plate |
| Width | 2 mm |
| Height | 109.2 mm |
| Depth | 52.6 mm |
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Ambient temperature (assembly) | -5 °C … 70 °C |
| Ambient temperature (actuation) | -5 °C … 70 °C |
| Permissible humidity (storage/transport) | 30 % … 70 % |
| Item number | 0790501 |
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Sales key | BE49 |
| Product key | BE4Z3X |
| Gtin | 4017918005610 |
| Weight per piece (including packing) | 11.287 g |
| Weight per piece (excluding packing) | 10.5 g |
| Customs tariff number | 39269097 |
| Country of origin | DE |
| Eclass-13.0 | 27250301 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
