Description

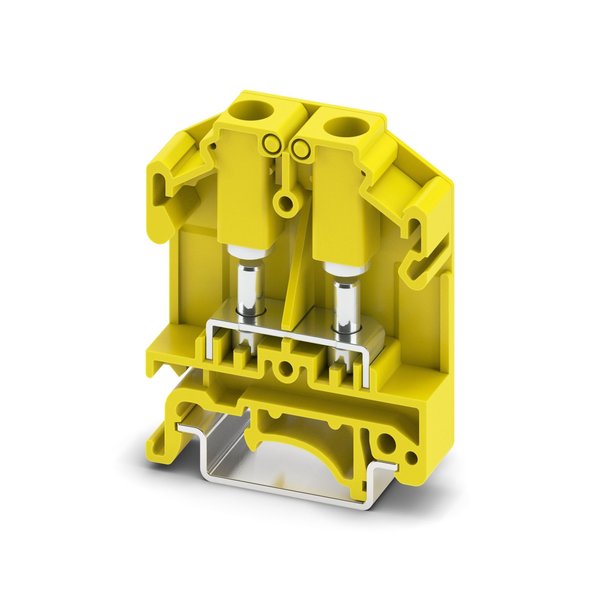

Phoenix Contact 0790620 — OTTA 6 YE. Manufacturer designation: OTTA 6 YE – Bolt connection terminal block – 0790620. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0790620 |
| Product Category | Terminals & Connectors |
| Product type | Bolt connection terminal block |
| Product family | OTTA |
| Overvoltage category | III |
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 1.31 W |
| Nominal cross section | 6 mm² |
| Cross section range AWG | (converted acc. to IEC) |
| Width | 11 mm |
| End cover width | 1.5 mm |
| Height | 43.5 mm |
| Depth on NS 32 | 57 mm |
| Depth on NS 35/7,5 | 52 mm |
| Depth on NS 35/15 | 59.5 mm |
| Color | yellow (RAL 1018) |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PA |
| Test voltage setpoint | 9.8 kV |
| Result | Test passed |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Short-time withstand current 6 mm² | 0.72 kA |
| Open side panel | Yes |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
