Description

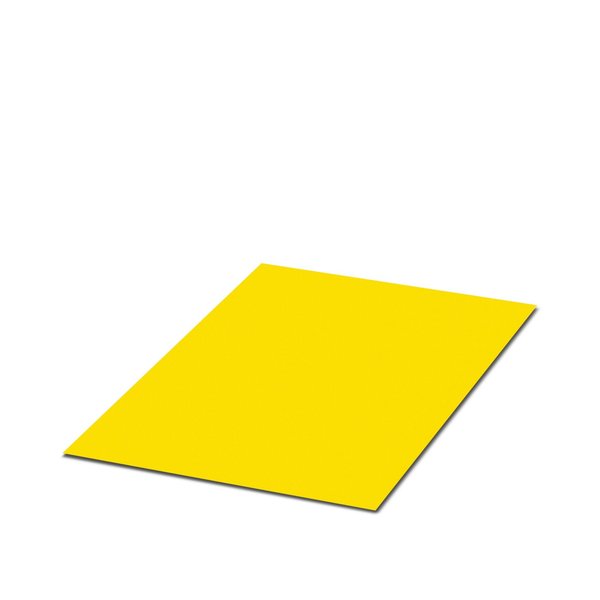

Phoenix Contact 0800132 — SK U YE:UNGESTANZT. Manufacturer designation: SK U YE:UNGESTANZT – Marker sheet – 0800132. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0800132 |
| Product Category | Terminals & Connectors |
| General | Print image may vary depending on laser printer |
| Product type | Terminal marker |
| Identification technology | Office laser printing |
| Width | 210.00 mm |
| Height | 297.00 mm |
| Depth | 0.32 mm |
| Text field width | 210 mm |
| Text field height | 296 mm |
| Foil strength | 50 µm |
| Adhesive strength | 20 µm |
| Adhesive | Acrylic |
| Color | yellow (RAL 1018) |
| Base element material | Polyester |
| Ambient temperature (operation) | -20 °C … 80 °C |
| Recommended humidity (storage/transport) | 40 % … 50 % |
| Result | Test passed |
| Specification | EN ISO 1518-1:2023 (following) |
| Requirements | ≥ 5 N |
| Test duration | 96 h |
| Procedure | Artificial irradiation. |
| Rating 125 °C (150 °C) | Test passed |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
