Description

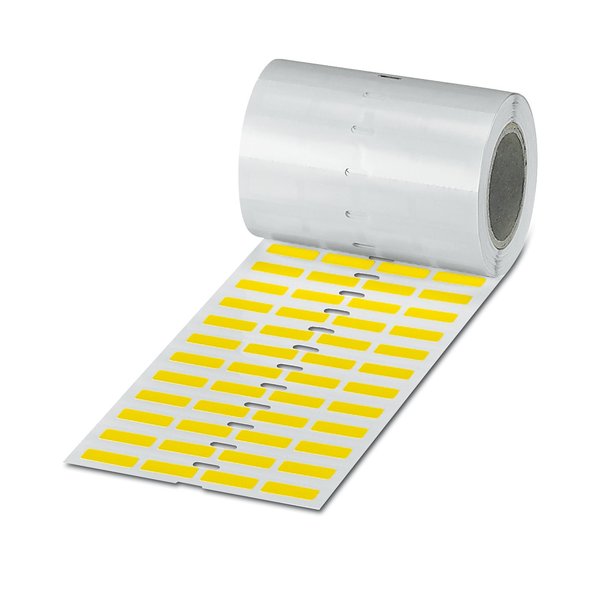

Phoenix Contact 0800235 — EMLC (20X8)R YE. Manufacturer designation: EMLC (20X8)R YE – Fabric label – 0800235. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0800235 |
| Product Category | Terminals & Connectors |
| Product type | Device marker |
| Product property | Low restoring force |
| Number of individual labels | 2500 |
| Identification technology | Thermal transfer |
| Width | 20.00 mm |
| Height | 8.00 mm |
| Depth | 0.07 mm |
| Text field width | 20 mm |
| Text field height | 8 mm |
| Color | yellow (RAL 1018) |
| Material | PA |
| Base element material | PA |
| Components | free from silicone and halogen |
| Ambient temperature (operation) | 0 °C … 125 °C |
| Result | Test passed |
| Specification | EN ISO 1518-1:2023 (following) |
| Requirements | ≥ 5 N |
| Test duration | 96 h |
| Procedure | Artificial irradiation. |
| Duration | 96 h |
| Temperature for testing | 40 °C |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
