Description

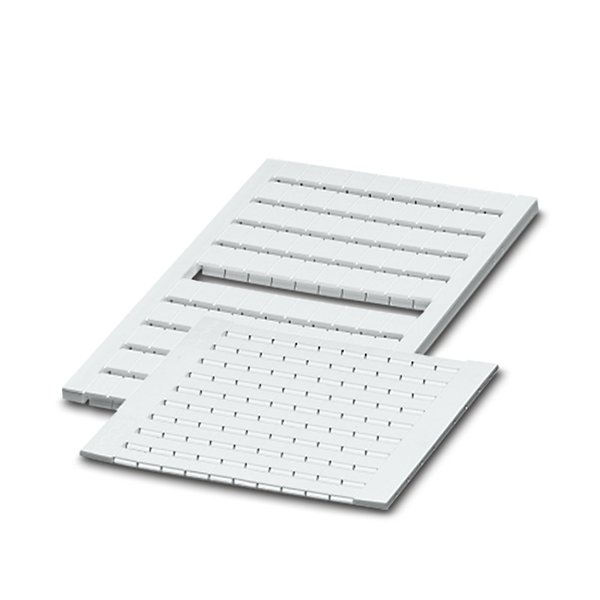

Phoenix Contact 0800271 — ZBFM 5/WH. Manufacturer designation: ZBFM 5/WH,LGS:1-120 – Zack marker strip – 0800271. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0800271 |
| Product Category | Terminals & Connectors |
| Product type | Terminal marker |
| Pitch | 5.2 mm |
| Number of individual labels | 120 |
| Number of individual labels per row | 12 |
| Printing direction | printed horizontally |
| Printing | consecutive numbers 1 … 120 |
| Slot type | flat |
| Width | 4.55 mm |
| Height | 6.50 mm |
| Depth | 1.60 mm |
| Text field width | 4.5 mm |
| Text field height | 5 mm |
| Color | white (RAL 9010) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Base element material | PA |
| Components | free from silicone and halogen |
| Ambient temperature (operation) | -40 °C … 100 °C |
| Recommended humidity (storage/transport) | 50 % |
| Specification | DIN EN ISO 4892-2:2021-11 (following) |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
