Description

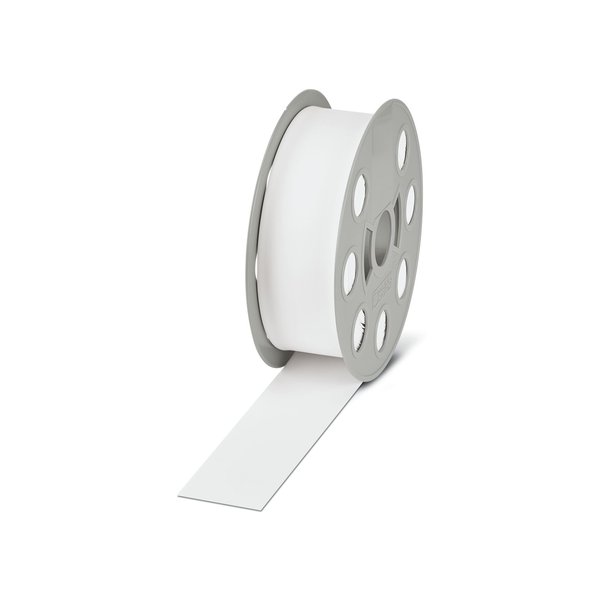

Phoenix Contact 0800298 — WMS 38. Manufacturer designation: WMS 38,1 (EX60)R – Shrink sleeve – 0800298. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0800298 |
| Product Category | Terminals & Connectors |
| Product type | Shrink sleeve |
| Identification technology | Thermal transfer |
| Length of roll | 15.00 m |
| Height | 63.7 mm |
| Text field width | 15000 mm |
| Text field height | 60 mm |
| Color | white (RAL 9010) |
| Base element material | polyolefine |
| Shrink rate | 3:1 |
| Components | halogen-free |
| Shrink temperature | > 85 °C |
| External cable diameter | 12.7 mm … 38.1 mm |
| Ambient temperature (operation) | -55 °C … 125 °C |
| Result | Test passed |
| Specification | EN ISO 1518-1:2023 (following) |
| Requirements | ≥ 5 N |
| Test duration | 96 h |
| Procedure | Artificial irradiation. |
| Rating 125 °C (150 °C) | Test passed |
| N -Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
