Description

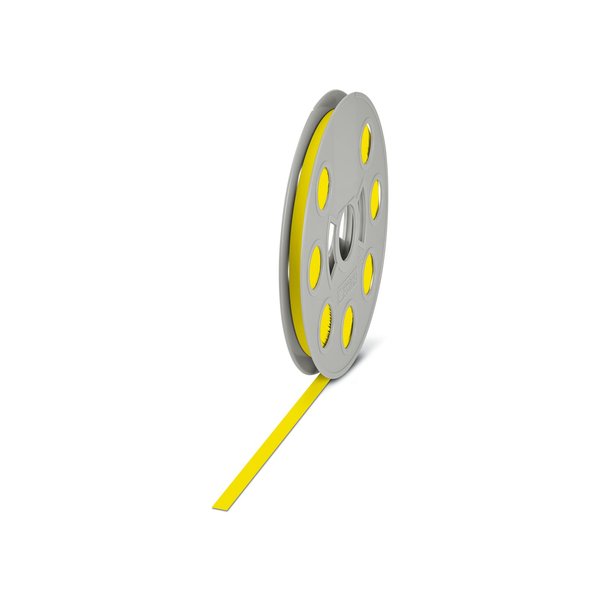

Phoenix Contact 0800303 — WMS 6. Manufacturer designation: WMS 6,4 (EX10)R YE – Shrink sleeve – 0800303. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0800303 |
| Product Category | Terminals & Connectors |
| Product type | Shrink sleeve |
| Area of application | KOMAX: M1650 TUBE |
| Identification technology | Thermal transfer |
| Length of roll | 25.00 m |
| Height | 11.2 mm |
| Text field width | 25000 mm |
| Text field height | 10 mm |
| Color | yellow (RAL 1018) |
| Material | Polyolefine |
| Base element material | polyolefine |
| Shrink rate | 3:1 |
| Components | halogen-free |
| Shrink temperature | > 85 °C |
| External cable diameter | 2.1 mm … 6.4 mm |
| Ambient temperature (operation) | -55 °C … 125 °C |
| Result | Test passed |
| Specification | EN ISO 1518-1:2023 (following) |
| Requirements | ≥ 5 N |
| Test duration | 96 h |
| Procedure | Artificial irradiation. |
| Rating 125 °C (150 °C) | Test passed |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
