Description

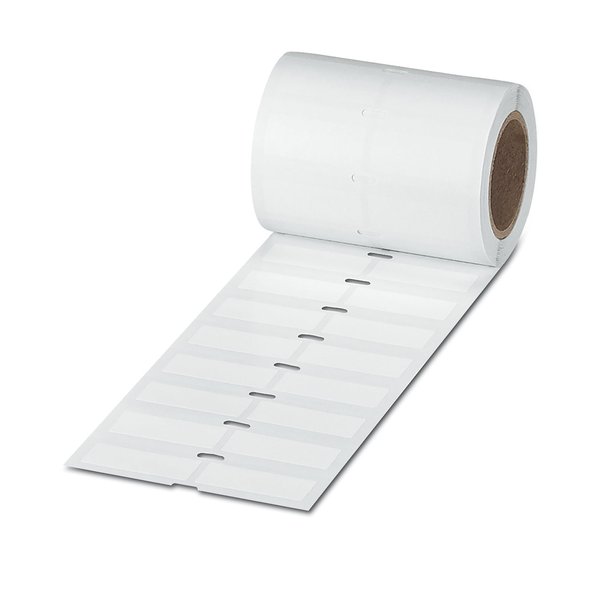

Phoenix Contact 0800339 — EML-HT (40X15)R. Manufacturer designation: EML-HT (40X15)R – High-temperature label – 0800339. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0800339 |
| Product Category | Terminals & Connectors |
| Product type | Device marker |
| Product property | Highly resistant to temperature |
| Number of individual labels | 1000 |
| Identification technology | Thermal transfer |
| Width | 40.00 mm |
| Height | 15.00 mm |
| Depth | 0.07 mm |
| Text field width | 40 mm |
| Text field height | 15 mm |
| RoHS compliant | yes |
| Foil strength | 50 µm |
| Adhesive strength | 20 µm |
| Adhesive | Acrylic |
| Color | white (RAL 9010) |
| Material | Acrylate |
| Base element material | Acrylate |
| Components | free from silicone and halogen |
| Ambient temperature (operation) | -40 °C … 180 °C |
| Recommended humidity (storage/transport) | 50 % |
| Result | Test passed |
| Specification | EN ISO 1518-1:2023 (following) |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
